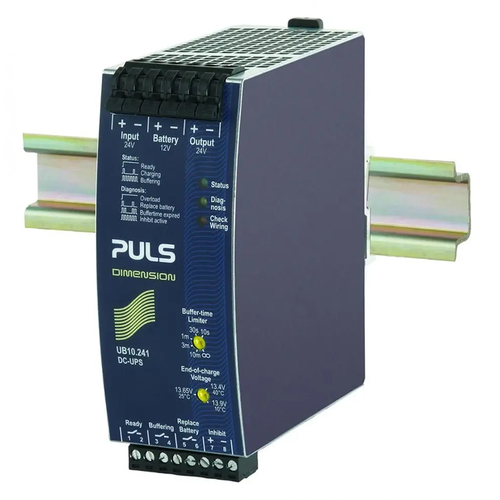

PULS UB10.241 DC-UPS, 24VDC 10A Uninterruptible Power Supply
PULS
$615.00
Free Lifetime Technical Support - Expert product, application, and troubleshooting assistance from our technical team for the life of your product.
The PULS UB10.241 is a 24 VDC, 10 A DIN-rail DC uninterruptible power supply (UPS) control unit designed to maintain power to critical industrial control systems during power failures and voltage fluctuations. Installed alongside a standard 24 VDC power supply, the UB10.241 helps prevent costly downtime, extended equipment restart cycles, and data loss by providing uninterrupted DC power during temporary power interruptions.
A key advantage of the UB10.241 is its ability to provide a 24 VDC buffered output using a single external 12 V battery. This eliminates the need to match multiple batteries and allows the integrated battery management system to precisely charge and monitor the battery for improved service life and reliable backup performance.
The UB10.241 provides comprehensive battery management, diagnostics, and protection features in a compact DIN-rail-mountable design. Electronically protected against overloads and short circuits, the unit also provides 50% power reserves and a selectable buffer time limiter to help optimize system operation and battery performance.
Key Features
- 24 VDC, 10 A DC-UPS control unit
- Maintains DC power during power failures and voltage fluctuations
- Requires only one external 12 V battery to provide a buffered 24 VDC output
- Professional battery management system for extended battery life
- Stable output voltage during buffer operation
- Battery monitoring and charging functions
- Replace-battery signal for preventative maintenance
- Comprehensive status and diagnostic monitoring
- Electronically protected against overload and short circuits
- 50% power reserve for additional capacity during demanding conditions
- Selectable buffer time limiter
- DIN-rail mountable design
- Quick-connect spring-clamp terminals for input, output, and battery connections
- Plug-in screw terminals for signal connections
- LED indicators for operating status, diagnostics, and wiring errors
- IP20 aluminum alloy housing with zinc-plated steel cover
- Suitable for Class I, Division 2, Groups A-D and Zone 2 applications
- ATEX classified, UL listed/recognized, and CE approved
- 3-year standard warranty
